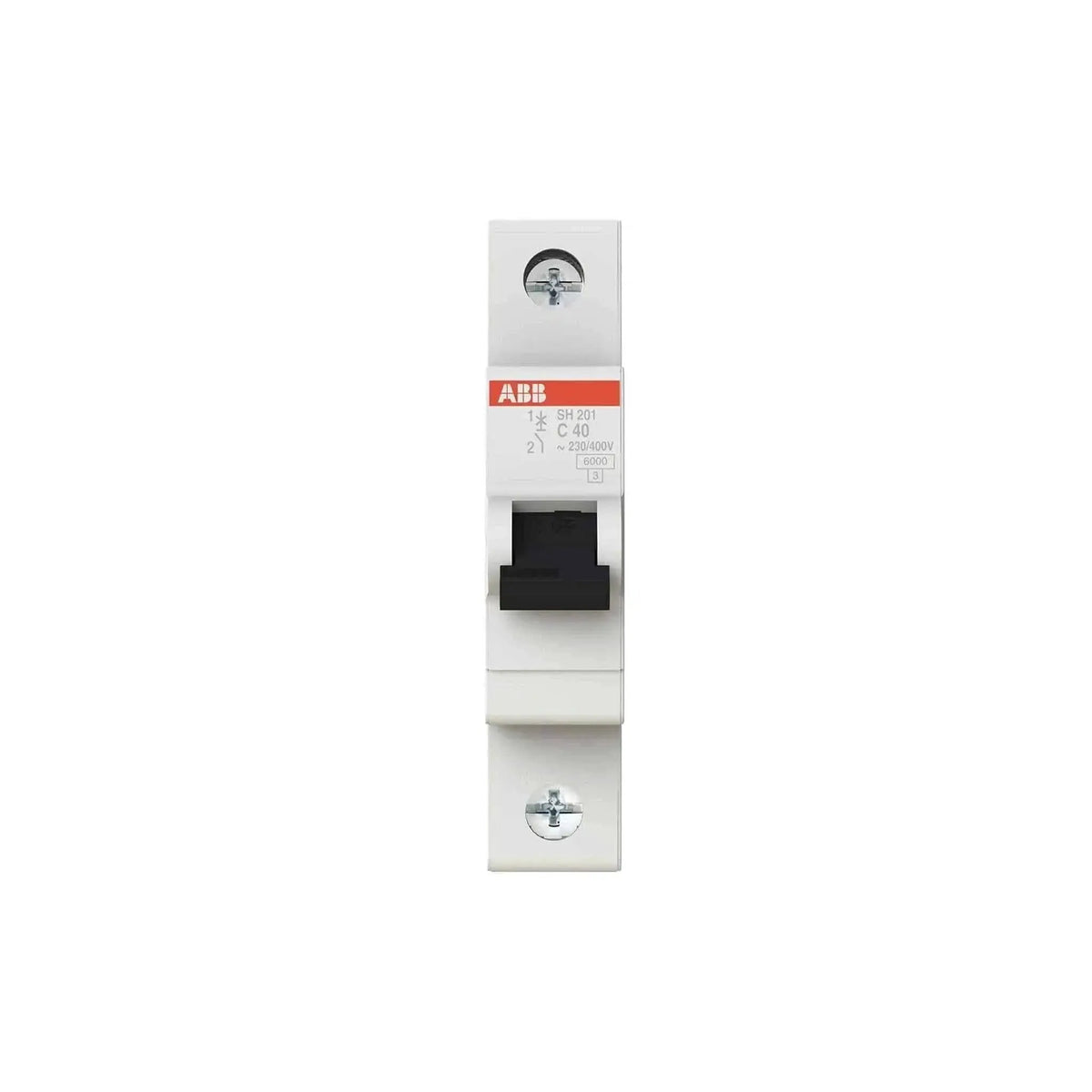

ABB 1P Type C MCB, 6KA, white body with black toggle and red ABB label

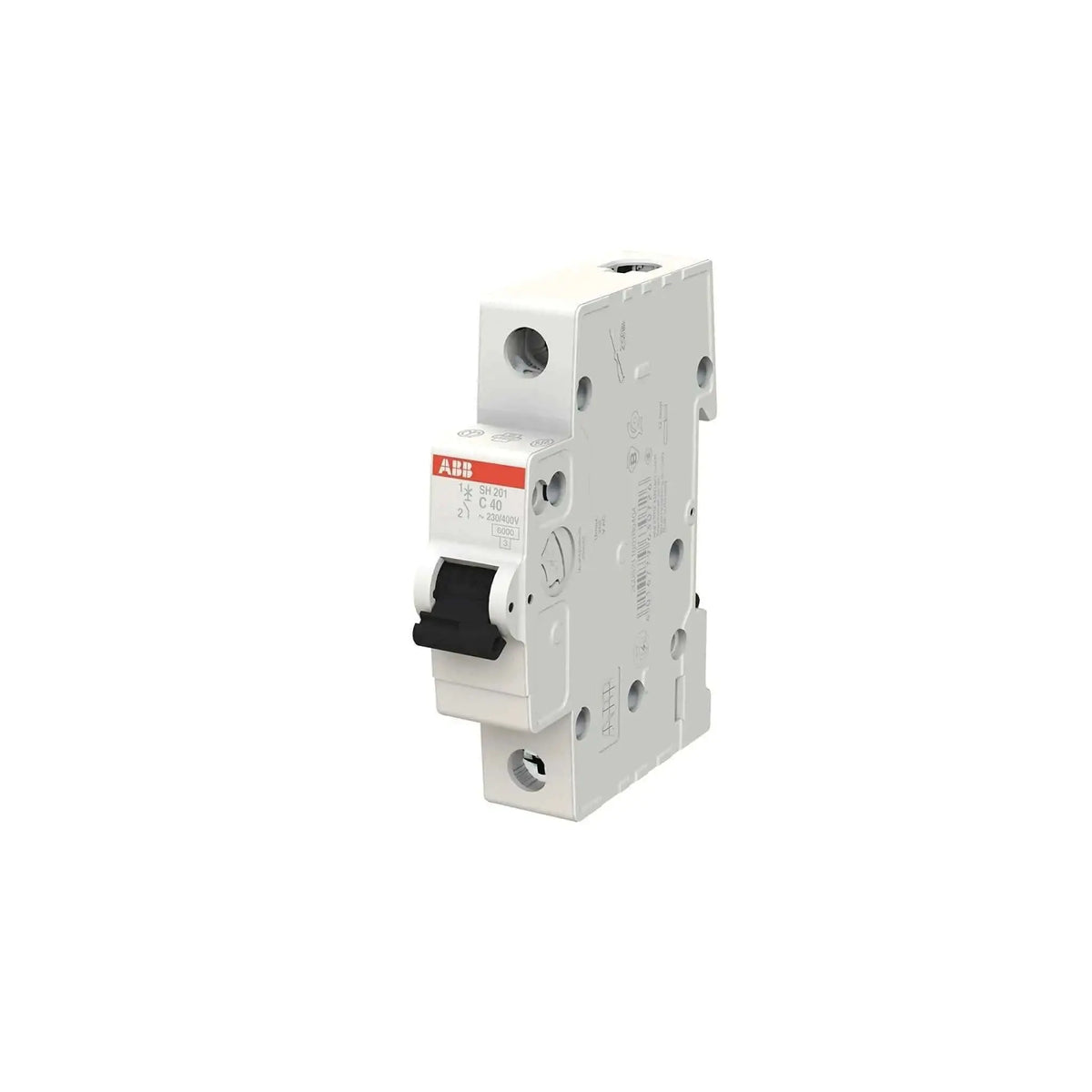

ABB miniature circuit breaker 1P Type C, 6KA, white housing

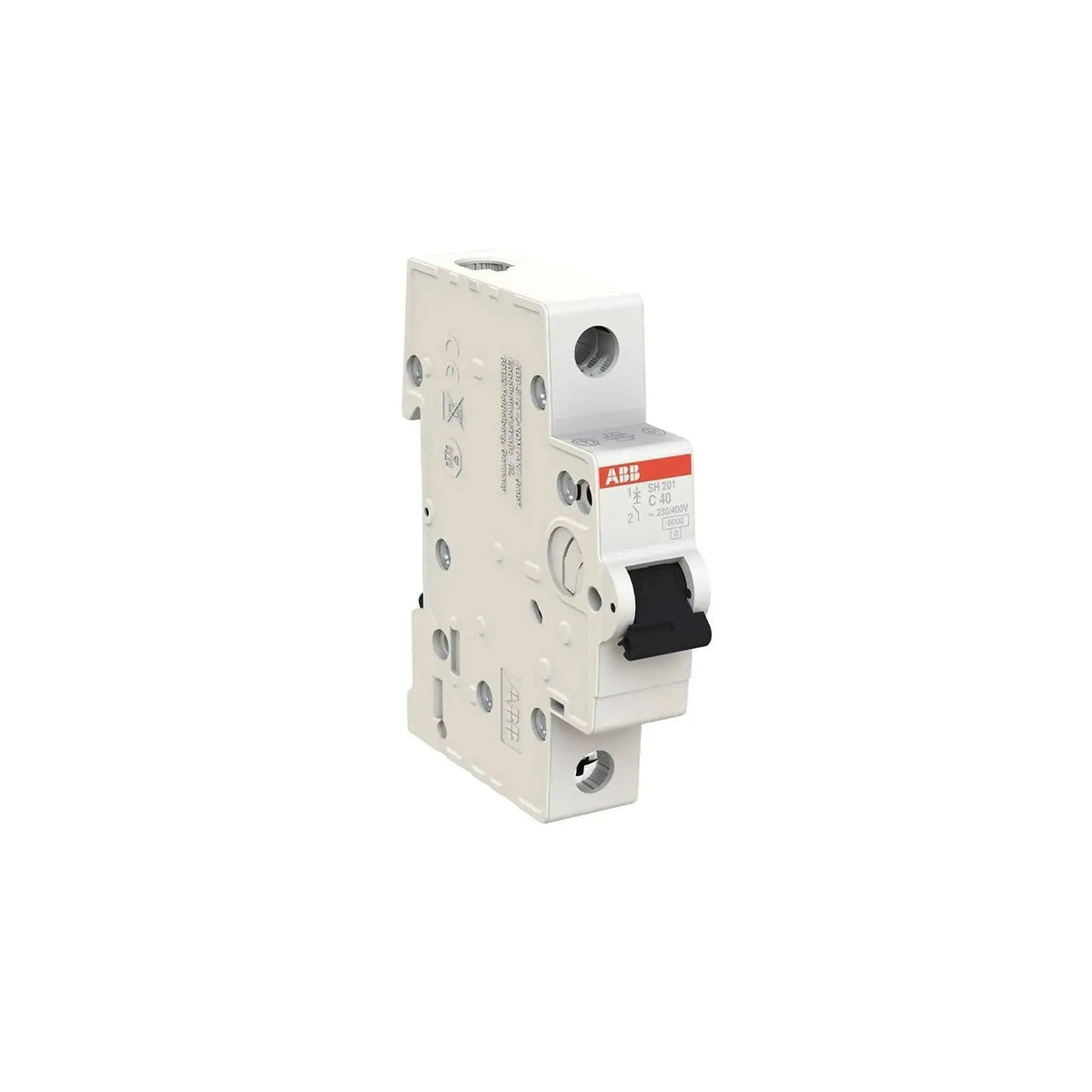

ABB 1P miniature circuit breaker, Type C, 6 kA, 6–32 A, white body with red ABB label and black toggle
ABB miniature circuit breaker 1P Type C, 6KA, 6A–32A, white enclosure with black toggle

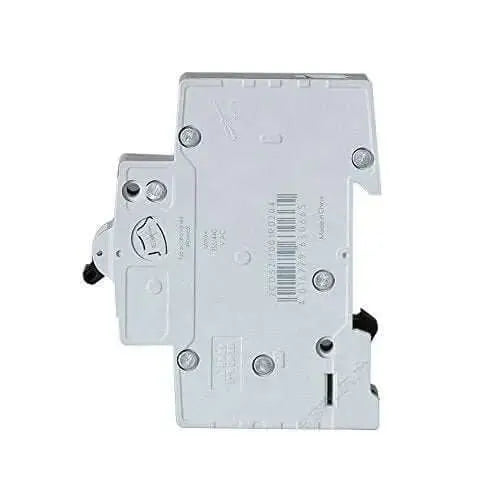

ABB 1P miniature circuit breaker, Type C, 6KA, 6A–32A, gray plastic body
ABB 1P Type C MCB, 6KA, white body with black toggle and red ABB label
ABB miniature circuit breaker 1P Type C, 6KA, white housing
ABB 1P miniature circuit breaker, Type C, 6 kA, 6–32 A, white body with red ABB label and black toggle
ABB miniature circuit breaker 1P Type C, 6KA, 6A–32A, white enclosure with black toggle
ABB 1P miniature circuit breaker, Type C, 6KA, 6A–32A, gray plastic body

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB MCB 1-Pole 6kA Type C — SH201 Range (6A–63A)

(0)
AED 14.00 inc. VAT
In stock
Usually ships within 24 hours
Title
Fast UAE delivery & easy returns

Order before 12 PM for same-day dispatch. Delivered in 1–2 business days across the UAE, free on orders over AED 200 (AED 15 below). Unused items in sealed packaging can be returned within 7 days.

Free UAE delivery over AED 200
100% secure payments
Genuine branded products

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB Miniature Circuit Breaker 1P 6KA Type C (6A–32A) provides reliable overload and short-circuit protection for residential, commercial, and light industrial panels. Available in six current ratings, it supports modest inrush on lighting, socket outlets, and small motors while staying compact for DIN-rail distribution boards.

Key Features

Overview

  • Single Pole (1P) protection
  • Breaking capacity: 6KA
  • Tripping curve: Type C
  • DIN rail mount for quick panel integration
  • Ratings: 6A, 10A, 16A, 20A, 25A, 32A
  • Applications: residential, commercial, small motor protection

Technical Specifications

Parameter Value
Brand ABB
Type Miniature Circuit Breaker (MCB)
Pole 1P
Breaking Capacity 6KA
Tripping Curve Type C
Mounting DIN Rail
Available Ratings 6A, 10A, 16A, 20A, 25A, 32A
Applications Residential Distribution Boards; Commercial Electrical Panels; Lighting & Socket Circuits; Small Motor Protection; Industrial Control Panels

Applications

Typical installations

  • Residential distribution boards
  • Lighting circuits and socket outlets
  • Small motor protection in light commercial apps
  • Commercial electrical panels

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
  • What does the Type C tripping curve mean?
    Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
  • What does the 6kA breaking capacity mean?
    6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
  • How many poles do I need?
    A 1-pole (1P) breaker switches the line conductor only — the standard choice for individual single-phase final circuits (lighting, sockets).
  • Is this MCB compatible with other ABB DIN-rail distribution boards?
    Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
  • Can I install this myself?
    No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.

Orders placed before 12 PM (UAE time) are dispatched the same business day and delivered in 1–2 business days across the UAE. Delivery is free on orders over AED 200; below that it costs AED 15. International shipping is charged by weight at checkout, and international orders cannot be returned. Read our Shipping Policy and Refund Policy.
