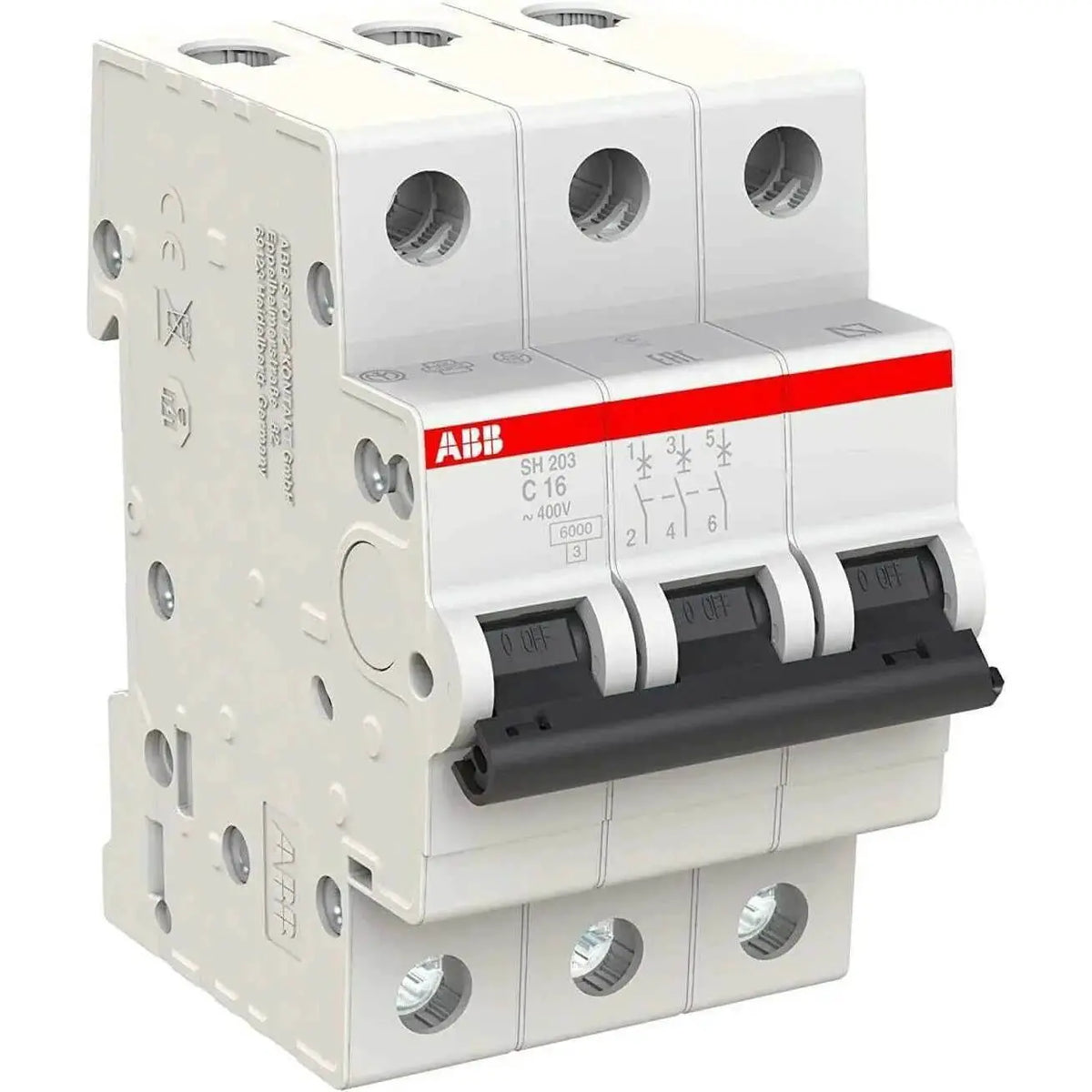

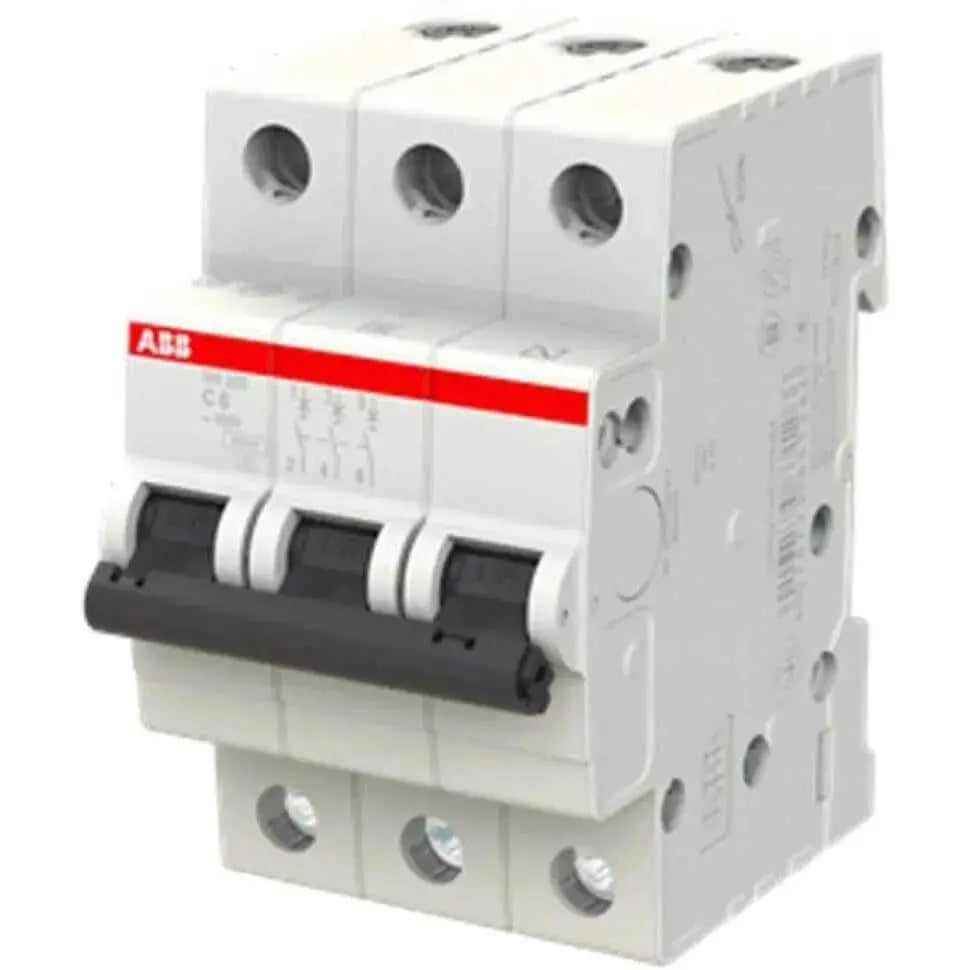

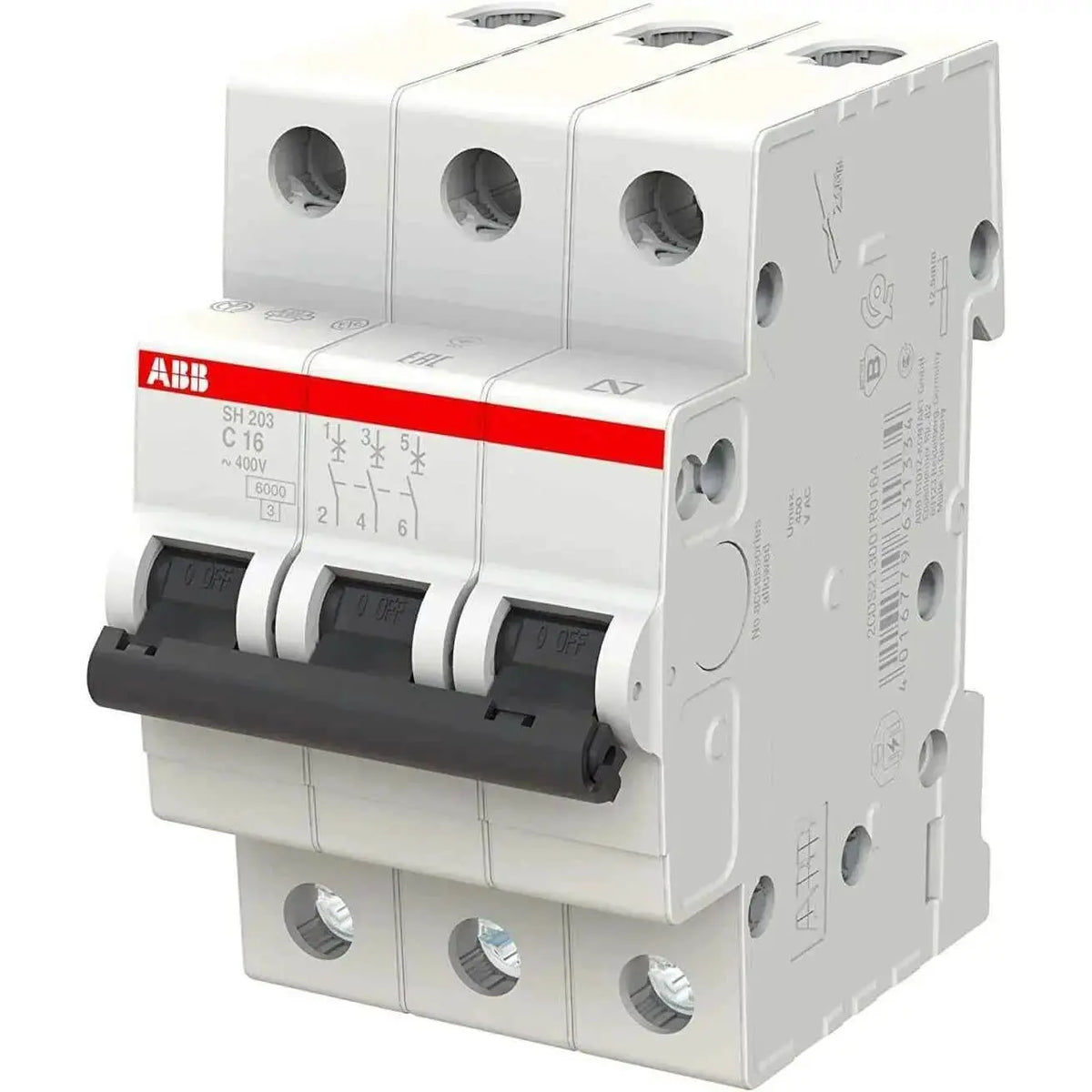

ABB SH203-C16 is a 3-pole miniature circuit breaker (MCB) rated for 16 A with a 6 kA breaking capacity, designed for reliable protection in residential and light commercial panels. It features DIN-rail mounting, a space-saving bottom-fixing auxiliary contact, and compliance with IEC, UL and CSA standards for global use, including UAE installations.
Key Features
- 3-pole MCB, Type C configuration for general-purpose protection
- Current rating: 16 A
- Operating voltage: 400 V AC
- Breaking capacity: 6 kA (Icu)
- DIN rail mounting with a compact bottom-fixing auxiliary contact for space savings
- Conforms to IEC, UL and CSA standards for worldwide applicability
- Suitable for domestic/residential installations in defined markets
Technical Specifications
| Parameter | Value |
| Brand | ABB |
| Model | SH203-C16 |
| Poles | 3 |
| Type | 3-Pole MCB, Type C |
| Current Rating | 16 A |
| Voltage | 400 V AC |
| Breaking Capacity | 6 kA |
| Mounting | DIN Rail |
| Standards | IEC, UL, CSA |
| Applications | Domestic/residential installations in defined markets |
| Datasheet | Download PDF |
Applications
- Residential distribution boards and panel boards
- Small commercial circuits and lighting branches
- Branch protection for outlets and general-purpose circuits
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
-
What does the Type C tripping curve mean?
Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
-
What does the 6kA breaking capacity mean?
6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
-
Is this MCB compatible with other ABB DIN-rail distribution boards?
Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
