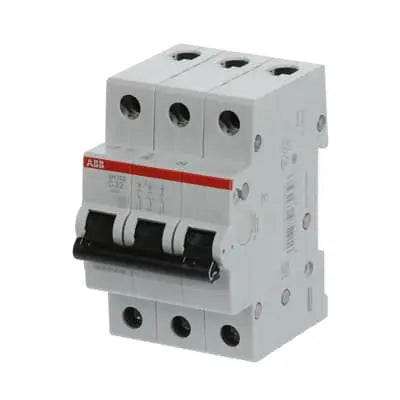

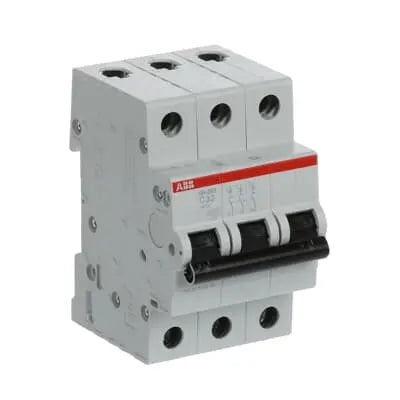

ABB SH203-C32 MCB 32A 3-Pole 6kA Type C

ABB Miniature Circuit Breaker 32A 3-Pole Type C SH203-C32

System pro M compact S200 series three-pole MCB with dual trip mechanisms for reliable overload and short-circuit protection. Designed for domestic/residential installations in defined markets, it features current limiting protection and a space-saving bottom-fixing auxiliary contact design.

Key Features

• Three-pole (3P) MCB for multi-phase distribution protection
• Rated current: 32 A with 6 kA breaking capacity at 230/400 V AC
• Type C tripping curve, suited for general electrical loads
• Dual trip mechanism: delayed thermal (overload) and electromagnetic (short-circuit)
• Complies with IEC/EN 60898-1
• DIN-rail mounting (TH35-7.5 / TH35-15 per IEC 60715)

• Three-pole, 32 A, Type C
• Breaking capacity: 6 kA
• Dual trip: delayed thermal for overload and magnetic for short circuit
• System pro M compact S200 family
• Bottom fixing auxiliary contact for space-saving installation
• Standards: IEC, UL, CSA
• Material: Durable plastic housing
• ON-OFF operation mode

Technical specifications

Applications

• Domestic and residential circuits in defined UAE markets
• Three-pole protection for multi-wire distribution boards
• Small-scale commercial installations requiring reliable overload and short-circuit protection

FAQ

• What's the difference between an MCB and an RCCB/RCD?
  An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
• What does the Type C tripping curve mean?
  Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
• What does the 6kA breaking capacity mean?
  6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
• How many poles do I need?
  A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
• Is this MCB compatible with other ABB DIN-rail distribution boards?
  Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
• Can I install this myself?
  No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
